Snow Gate for Loaders and Graders – Drag and drop snow to keep driveways and intersections clear

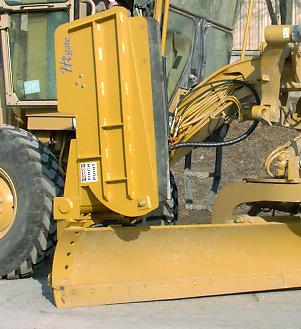

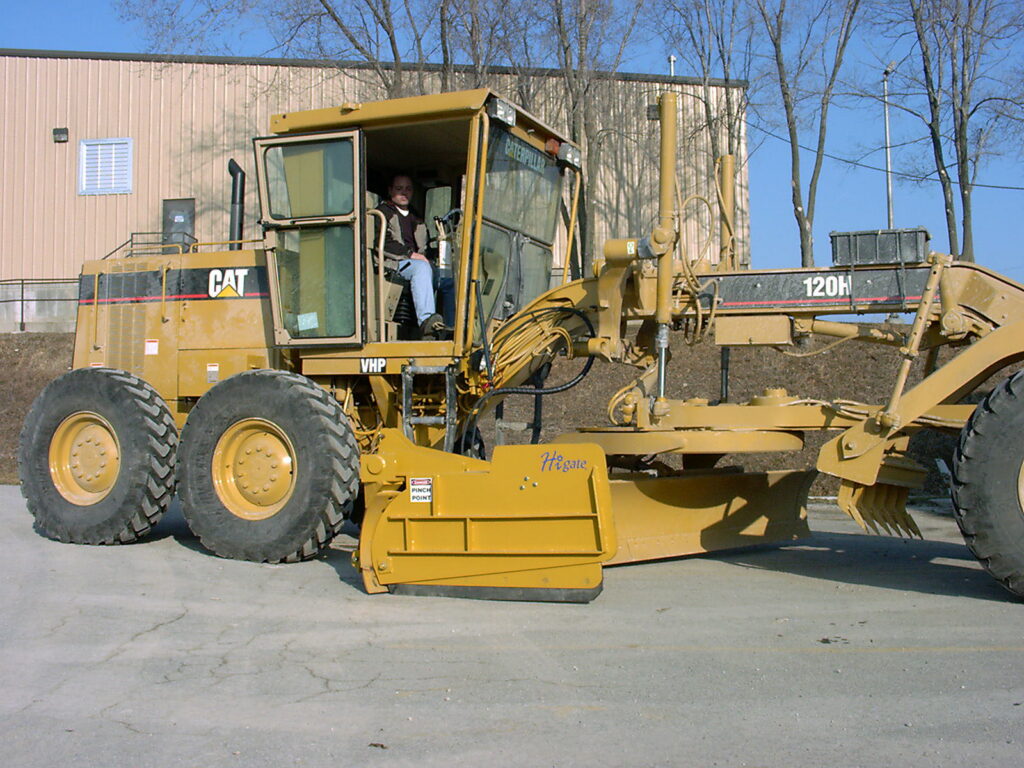

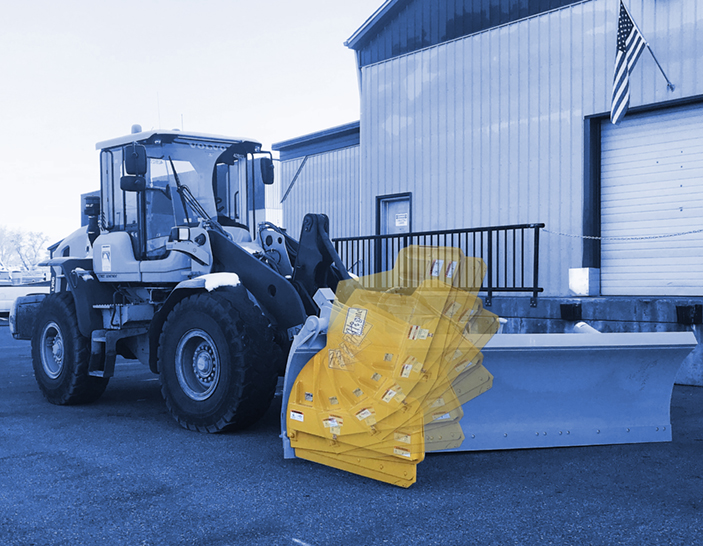

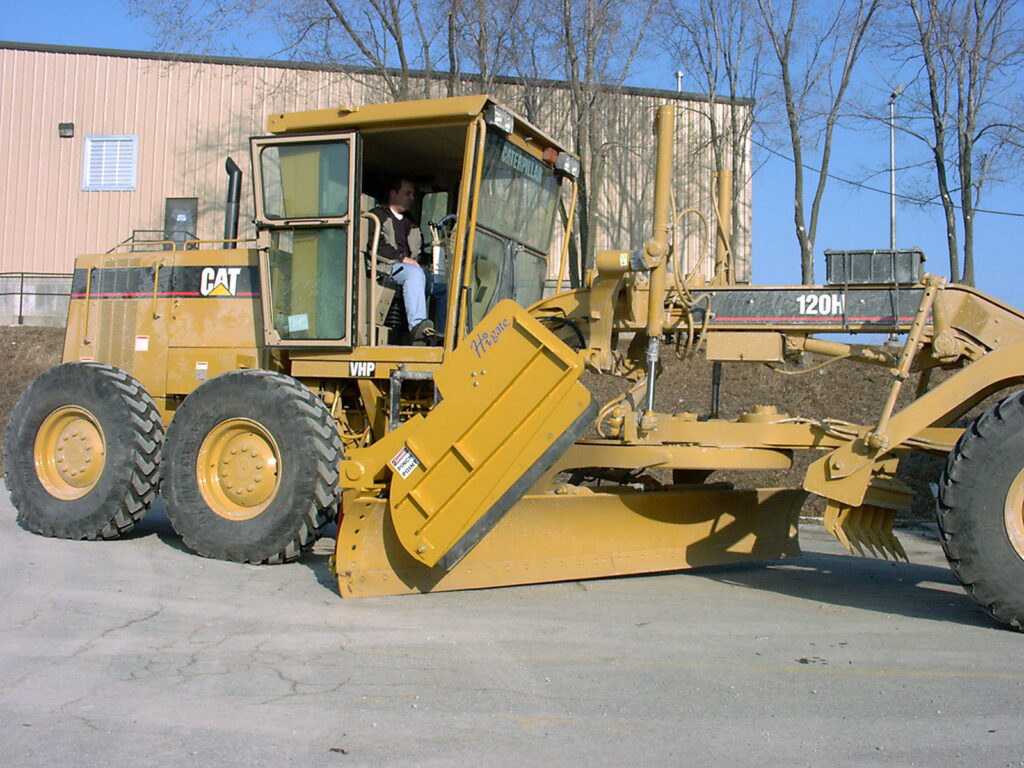

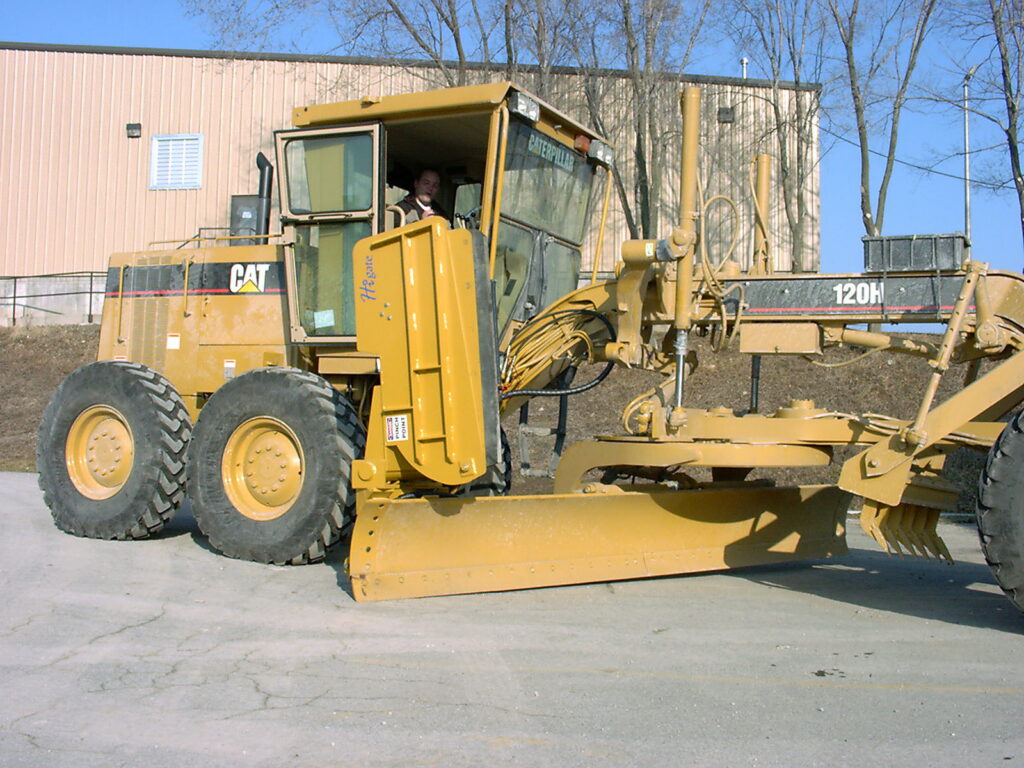

The Henke Hi-Gate snow gate is designed to interrupt the material windrow for snow clearing past driveways, cars, and intersections in winter and reclaiming aggregate during summer operations.
Snow Gate Applications
- Snow gates reduce snow in driveways
- Snow gates reduce snow in intersections
- Overwhelming public support – results in fewer calls for re-plowing
- Can be used to reduce aggregate loss when grading in the summer
Features
- A spring cushioned road contact strip will be provided with a rubber cutting edge to allow for grader moldboard actuation and continuous down pressure.
- Gate and cylinder are easily removed in minutes.
- Allows for moldboard rotation.
- Structural reinforcements throughout to prevent bending.
- US Patent #s: 6,347,465 & 7100314
- Weight: 600 pounds (approximate)
- Length: 55 inches
- Height: 33 inches
- Hydraulics: 3” x 10” x 1 ¾” double acting cylinder
The video below is a 360 degree video, click on the play button and use the arrows to navigate the video to see different views.
