For Trucks

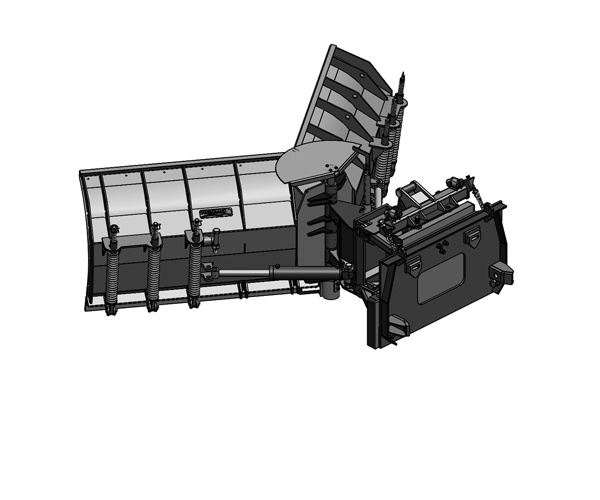

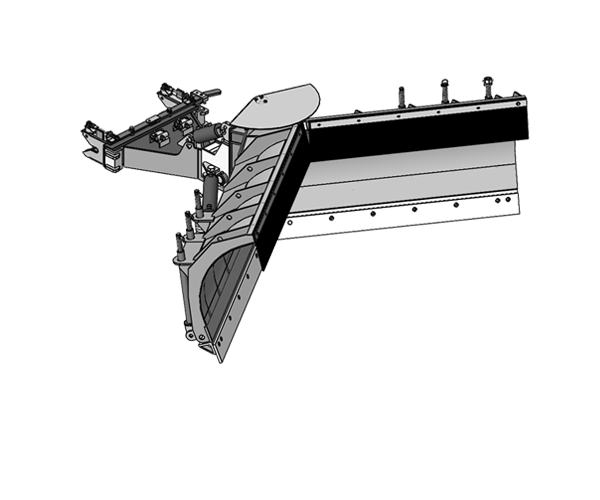

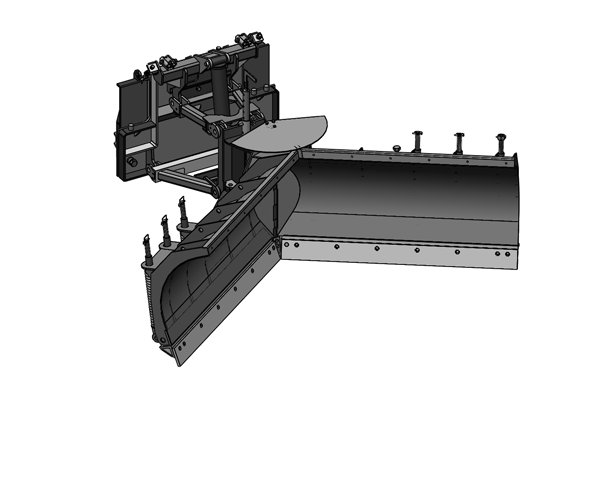

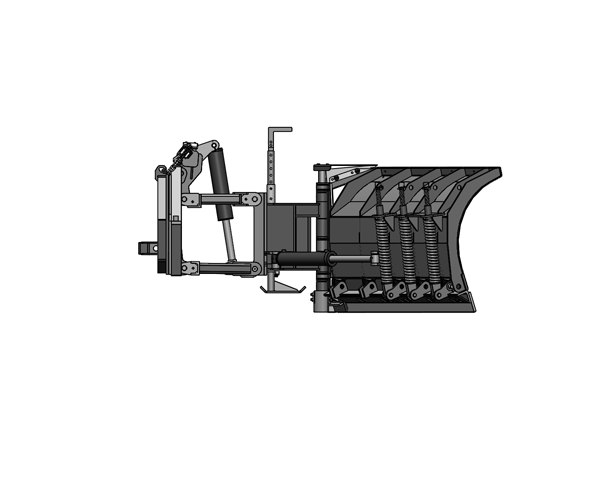

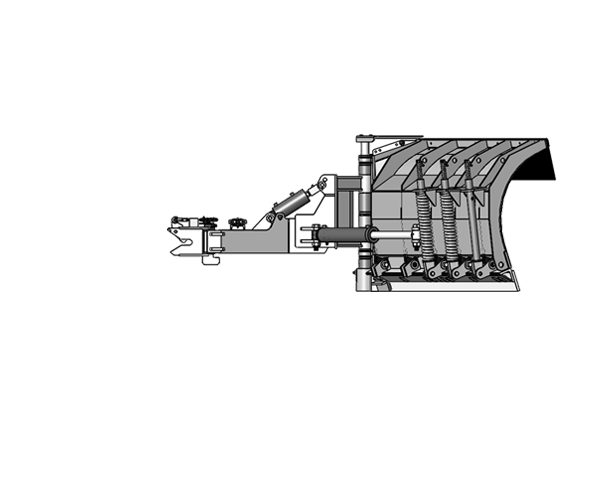

The Henke FVX is ideal for urban/city plowing, especially for areas with lots of cul-de-sacs and roundabouts. The FVX adjusts to Scoop, Vee or Reversible plowing positions for maximum versatility.
- 41″ tall moldboard
- Moldboard Lengths: 10′, 11′, 12′, 14′
- Cushion valves to relieve plow power reversing cylinders
- Variety of Cutting Edges Available
- Henke parallel lift system Or Chain Lift
- (2) 3.5” bore x 16.25” stroke with 2” rod cylinders for wing operation
- Compression spring trip-edge
- Angle Width: (121” on 12’ only)
- V-Width: (125.5” on 12’ only)
- Scoop Width: (116” on 12’ only)
(3) auxiliary hydraulic valves required for the Henke FVX – Folding V-Plow
- (2) auxiliary hydraulic valves to angle each wing section
- (1) auxiliary hydraulic valve for raise / pitch
