Features

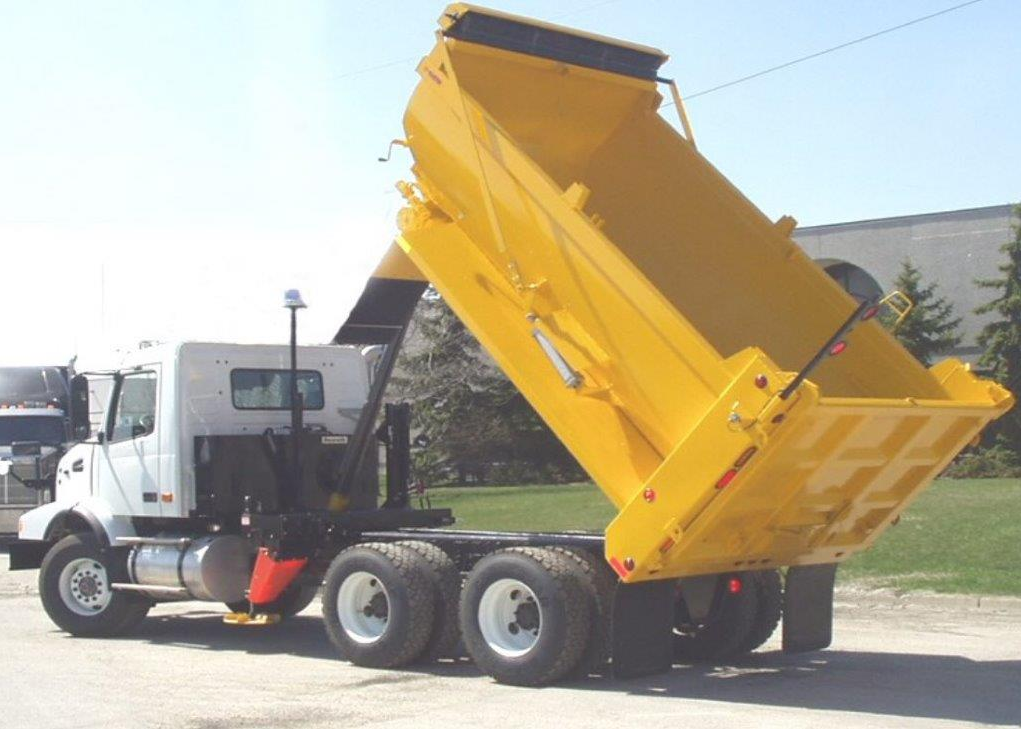

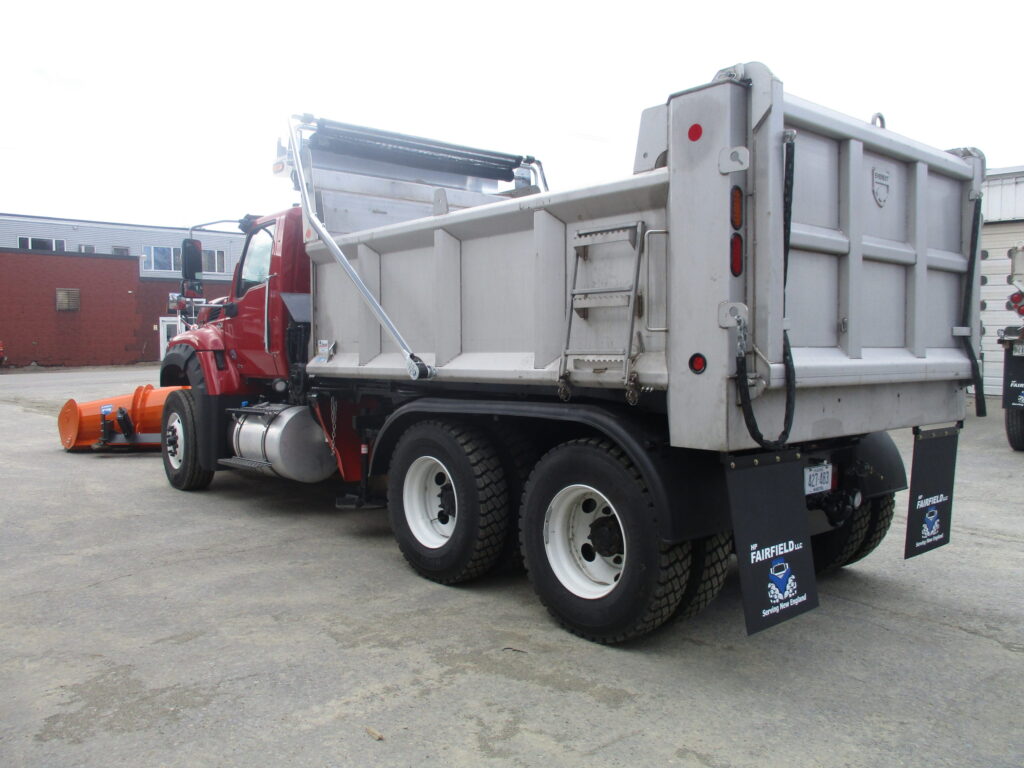

- Combination front discharge hopper spreader and conventional dump body construction
- Minimizes material build up
- Lighter – Up to 40% lighter than conventional cross member bodies of comparable strength when combined with our telescopic hoists
- Tougher – “Formed components” technology provides a design that results in superior strength to weight ratio through the use of “ultra strength” AR steels
- 11’ and 13’ to 16’ lengths available
- 39” (11’ model only) and 48” and 51” high sides
- 45” (11’ model only) and 60” high tailgates
- Heavy duty hardware
- Front mounted telescopic hoist
- 1-1/2” flame cut tailgate hinge ears
- Radius sides allow for constant and smooth flow of material to the built-in conveyor. The radius sides eliminates external side bracing
- Full depth rear corner posts
- Formed “U” shaped sills provide a wide and continuous floor support
- 9 panel bracing double acting tailgate with lever type coal door
- Central longitudinal conveyor using 667x pintle chain emptying through the body front. The conveyor shall be driven by a 10 cubic inch hydraulic motor coupled to a 25:1 worm gear reducer box
- The material is then feed to a frame mounted cross conveyor that feeds to a spinner arrangement
