Features
- The HCC front tower features a low profile design. This tower design provides adequate wing lift without vertical extensions above the tower structure
- Open tower design is self-cleaning easily shedding snow and road debris
- Lift cylinder is located behind the tower beam for greater protection
- The modular tower attachment brackets provide simple removal to allow for service or off-season weight savings
- If the truck is fitted out with a Power Tilt hitch, this tower will tilt forward with the hitch for ease of truck servicing
- The HCC36 tower provides 36″ of vertical wing lift. This system normally incorporates our safety trip dee for full moldboard trip action
- (This wing system is also available with our ACP36 fully hydraulic front tower)

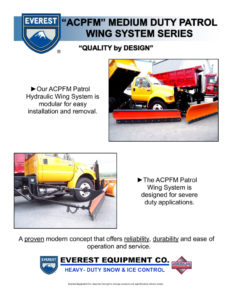

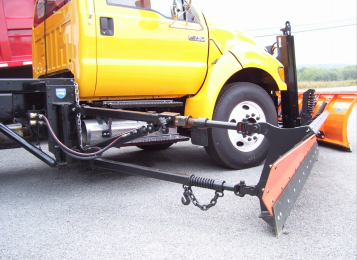

- Our low profile ACPFM patrol rear module minimizes the mounting area required behind the truck cab for installation
- The ACPFM rear module incorporates a hydraulic cylinder to raise and lower the rear of the wing moldboard
- The wing arm mounting structure is made from 6 x 6 HSS section with heavy plate attachment lugs for the wing arms and the lifting cylinder
- The upper wing arm features a tension spring to assist the tripping action
- The lower wing arm features a compression spring to absorb forces from wing plowing
