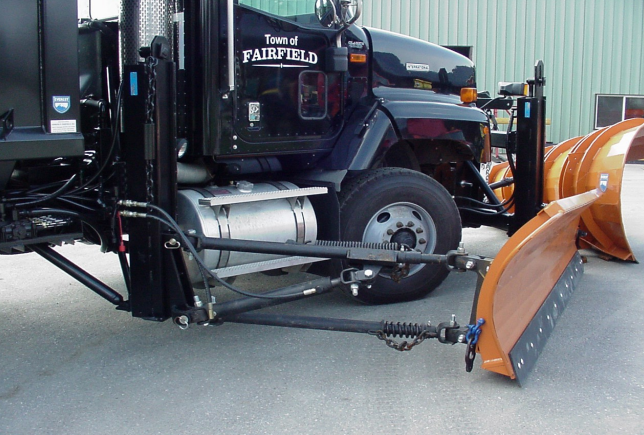

Features
- Independently controlled hydraulic front tower with safety trip dee
- Hydraulic cylinder inside enclosed cabinet for protection
- Allows wing 6″ of float
- Slider assembly runs full length of front tower
- Tower tilts forward with power tilt hitch
- The tower bolts to cross tubes
- Totally hydraulic rear tower
- Completely enclosed rear cabinet with hydraulic cylinder located inside for protection
- Tower slider attaches directly to cylinder end for positive lift. Square bar slider keeper track full length of rear tower
- The upper wing arm incorporates a wire tension trip spring to return wing to plowing position after wing has encountered an obstruction
- The upper wing arm has a sliding cylinder connecting lug to lift the wing and also to provide vertical wing float
- The upper arm will extend from 66″ to 78″ in length (pin to pin)
- The lower arm incorporates a compression spring to create a shock absorber affect for the wing plow
- The wing arms have universal joint connectors at both ends of the wing arms
- The lower wing arm will extend from 64″ to 76″ (pin to pin)
